1. Core System (Max 96 Links)

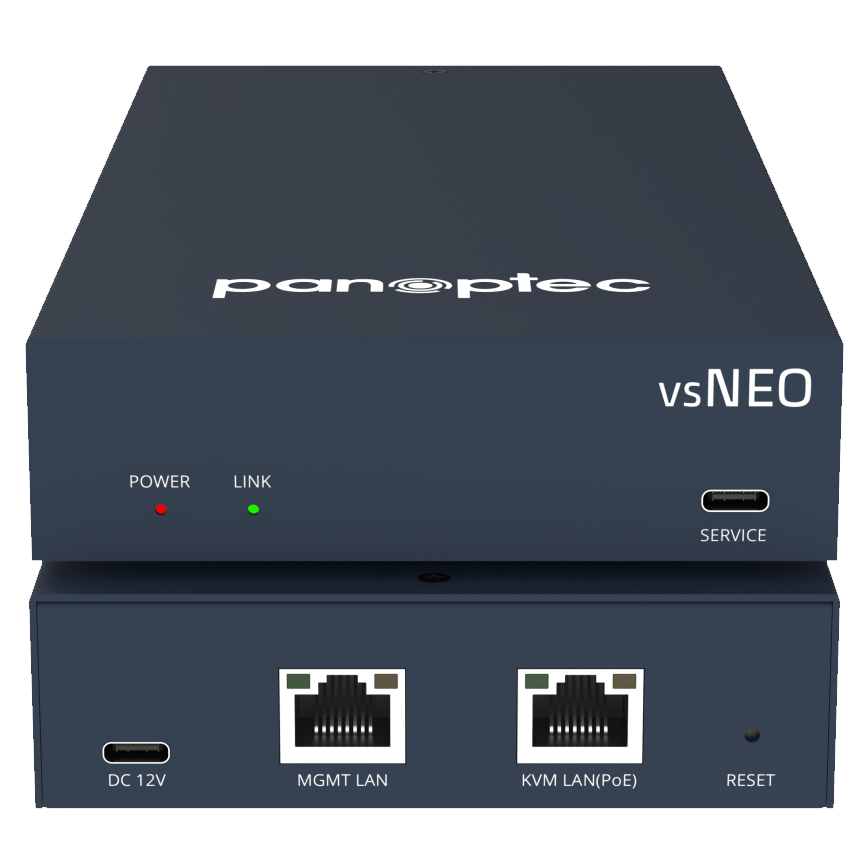

vsNEO Center

Central management unit, Air-Gap firewall, and DHCP server.

1x Mandatory

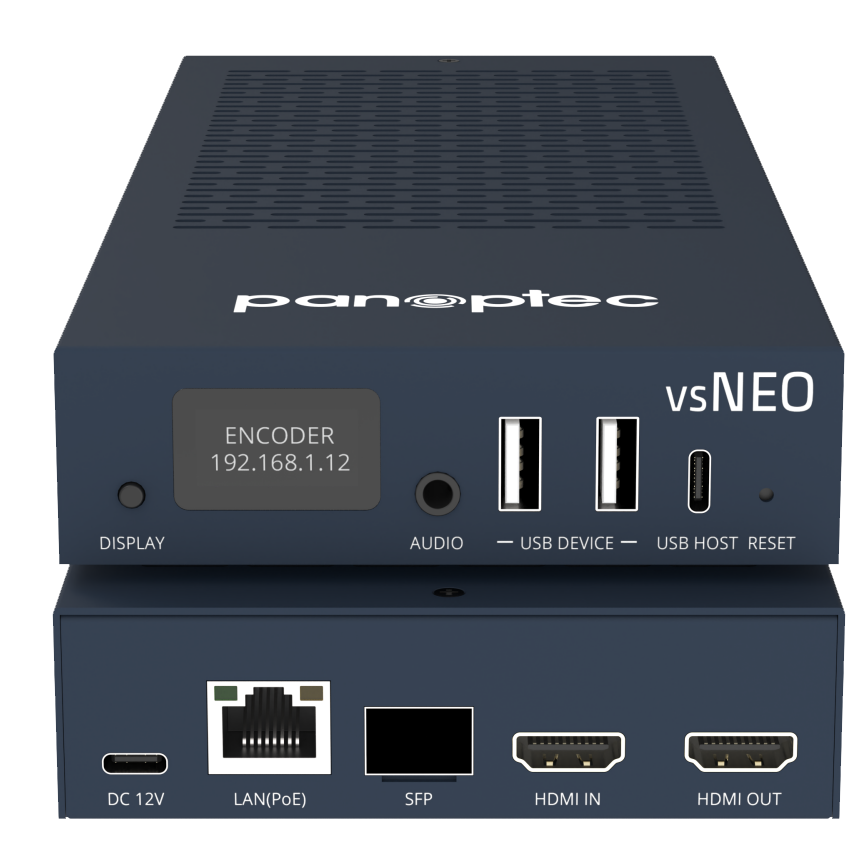

vsNEO Link

How many source PCs / servers need to be captured?

vsNEO Link

How many screens are located in the control room or at operator desks?

System Limit Exceeded: A vsNEO system supports a maximum of 96 vsNEO-links. Please reduce sources or displays.

2. Endpoint Power

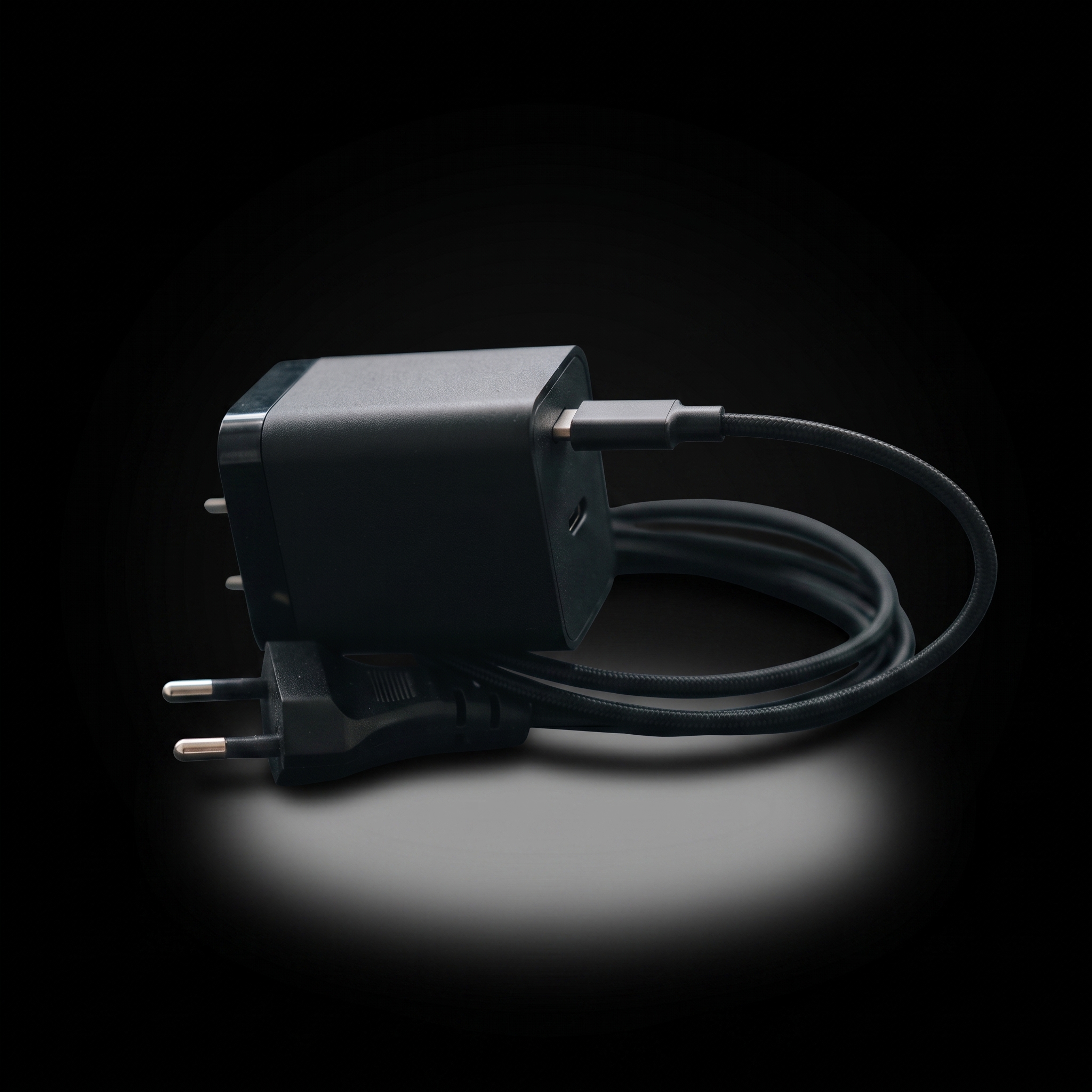

12V Power Supply

Individual power supply units for (vsNEO endpoints + vsNEO-center).

MultiPower

Redundant power supply. Powers up to 12 devices centrally.

PoE Switch Supply

Number of devices (vsNEO endpoints + vsNEO-center) powered via an onsite PoE+ switch.

4. Fiber Modules (SFP)

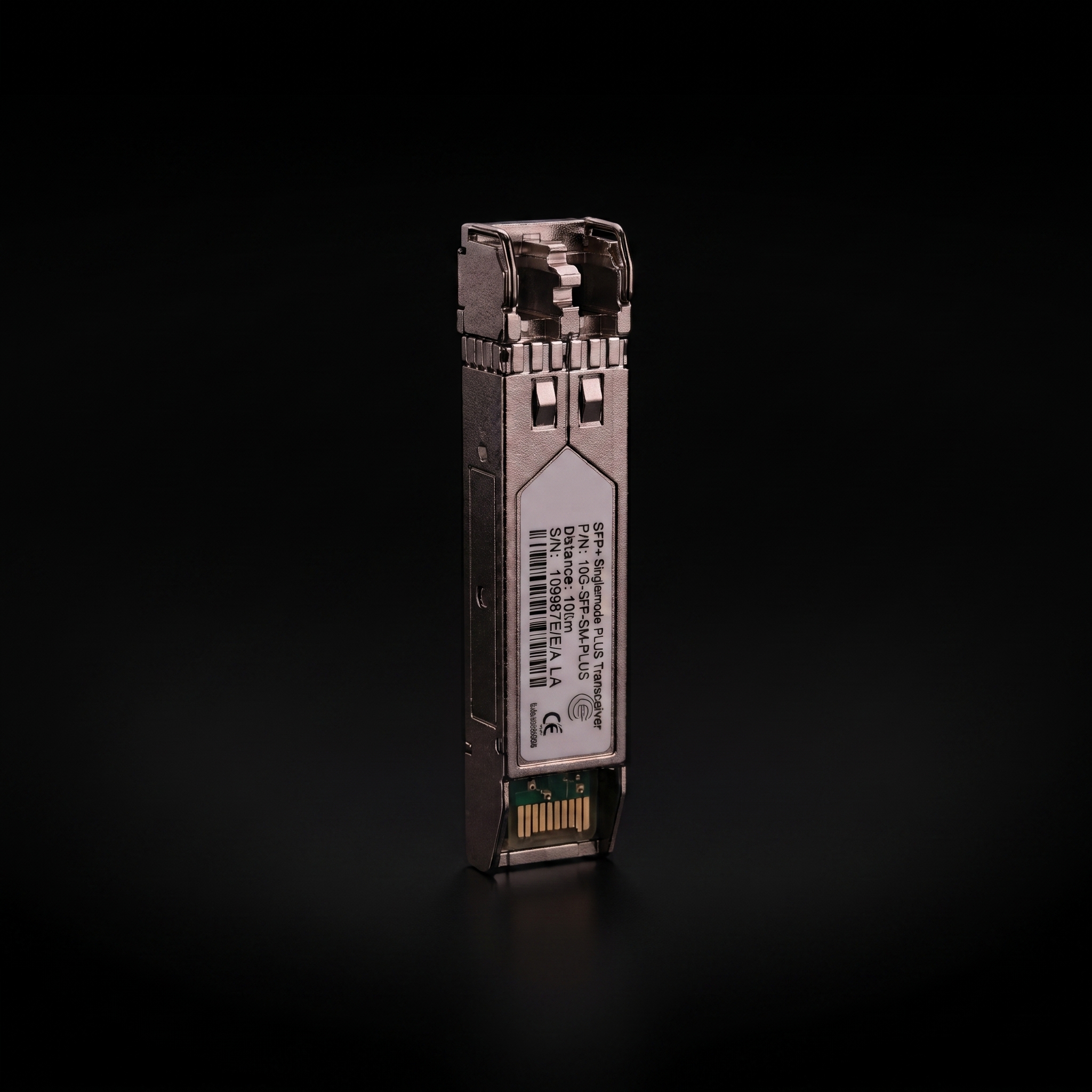

SFP Modules

For fiber optic network links.

Multi-Mode up to ~550m
Single-Mode up to ~10km
Single-Mode+ up to ~40km

5. Rack Infrastructure (Manual)

3RU Carrier

Provides space for up to 12 vsNEO units. (0 slots free)

1RU Carrier

Provides space for up to 3 vsNEO units. (0 slots free)

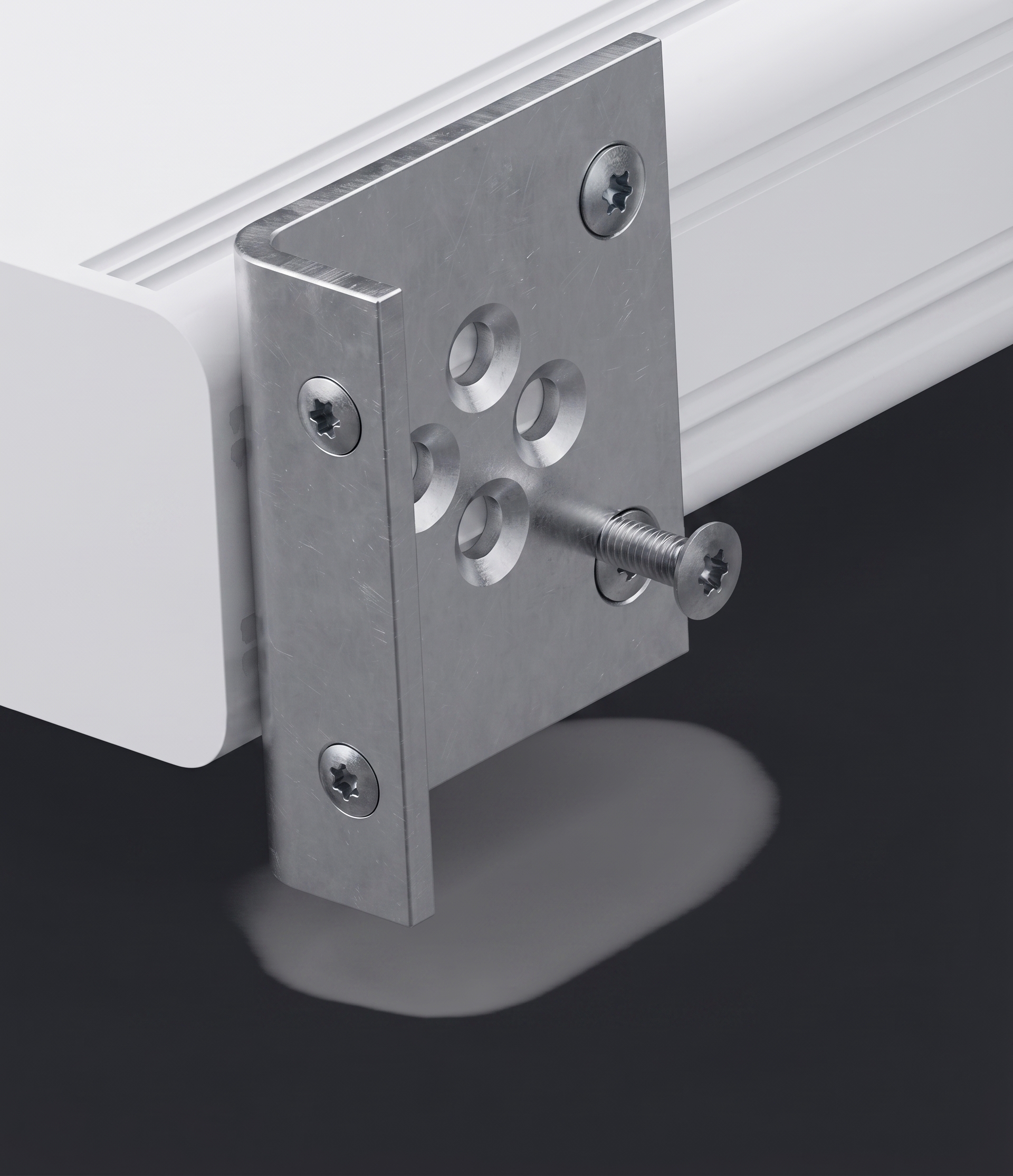

Case Mount

How many vsNEO units will be screwed into the above carriers? (Generates Case-Mount-Sets)

vsNEO AIR

Active ventilation module for fully populated 3RU carriers.

6. Smart Control Add-ons (Optional)

Advanced Keyboard

Touchscreen control console (+1 network port per unit).

ControlVU Touch

Enterprise touch panel for desks/racks (+1 network port per unit).

Standard Keyboard

Tactile standard keyboard with programmable additional keys.

Command Deck

Compact console with 15 LCD keys for layout switching.

7. Cabling & Adapters

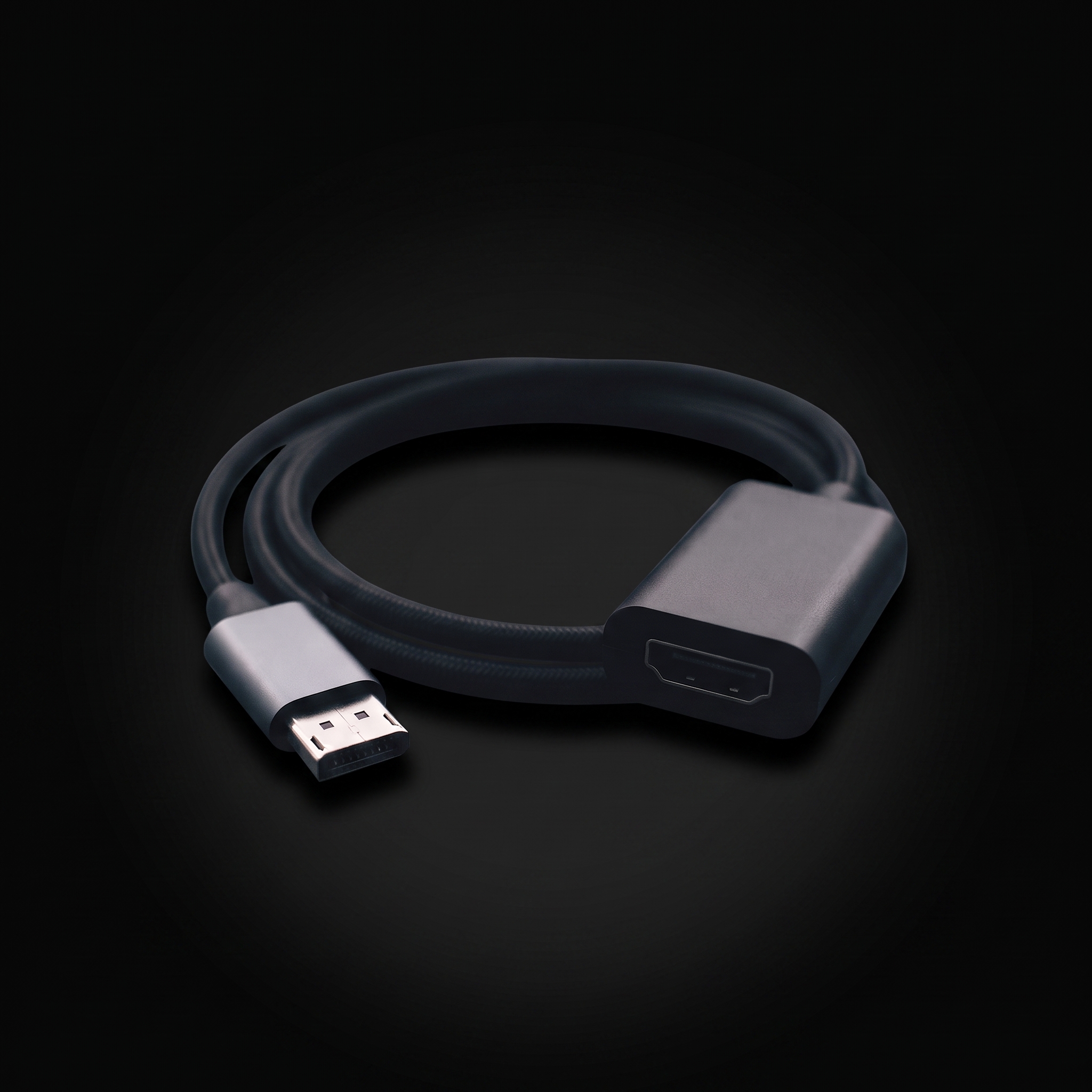

DP Adapter

Required for source PCs with DP output.

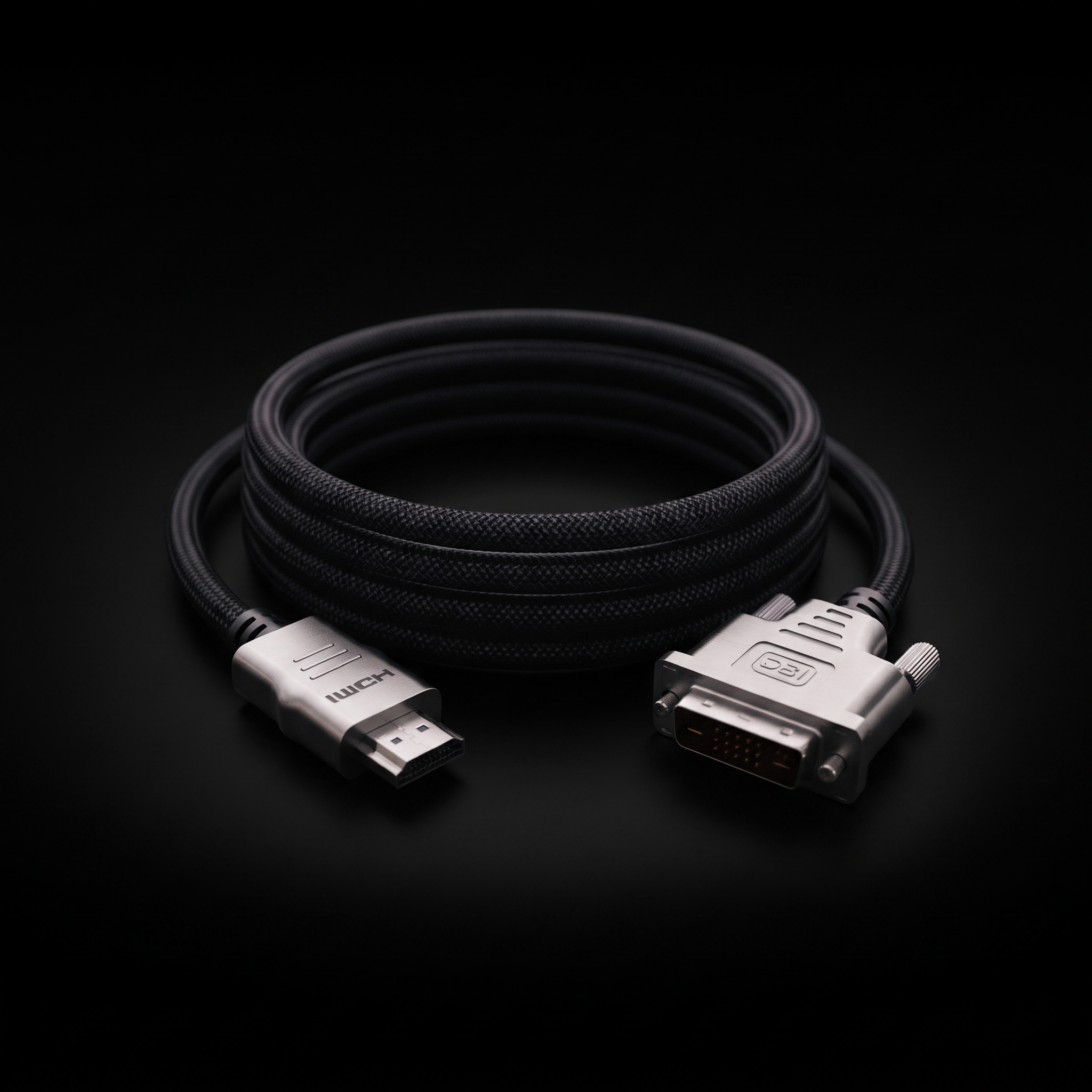

DVI to HDMI Cable

For legacy DVI sources or monitors.

2m
3m
5m

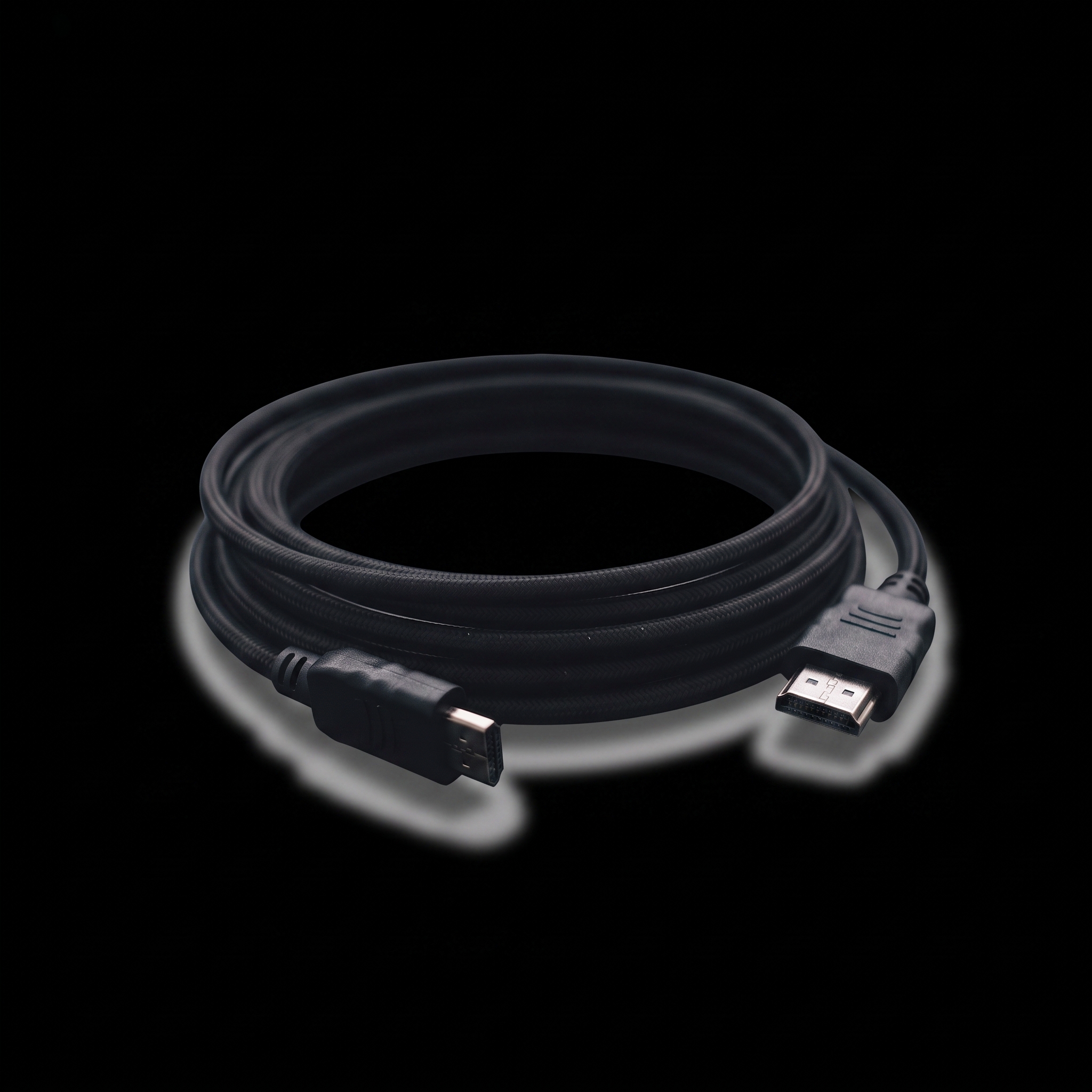

HDMI Cable

Connection between encoder/decoder and target device.

2m
3m
5m

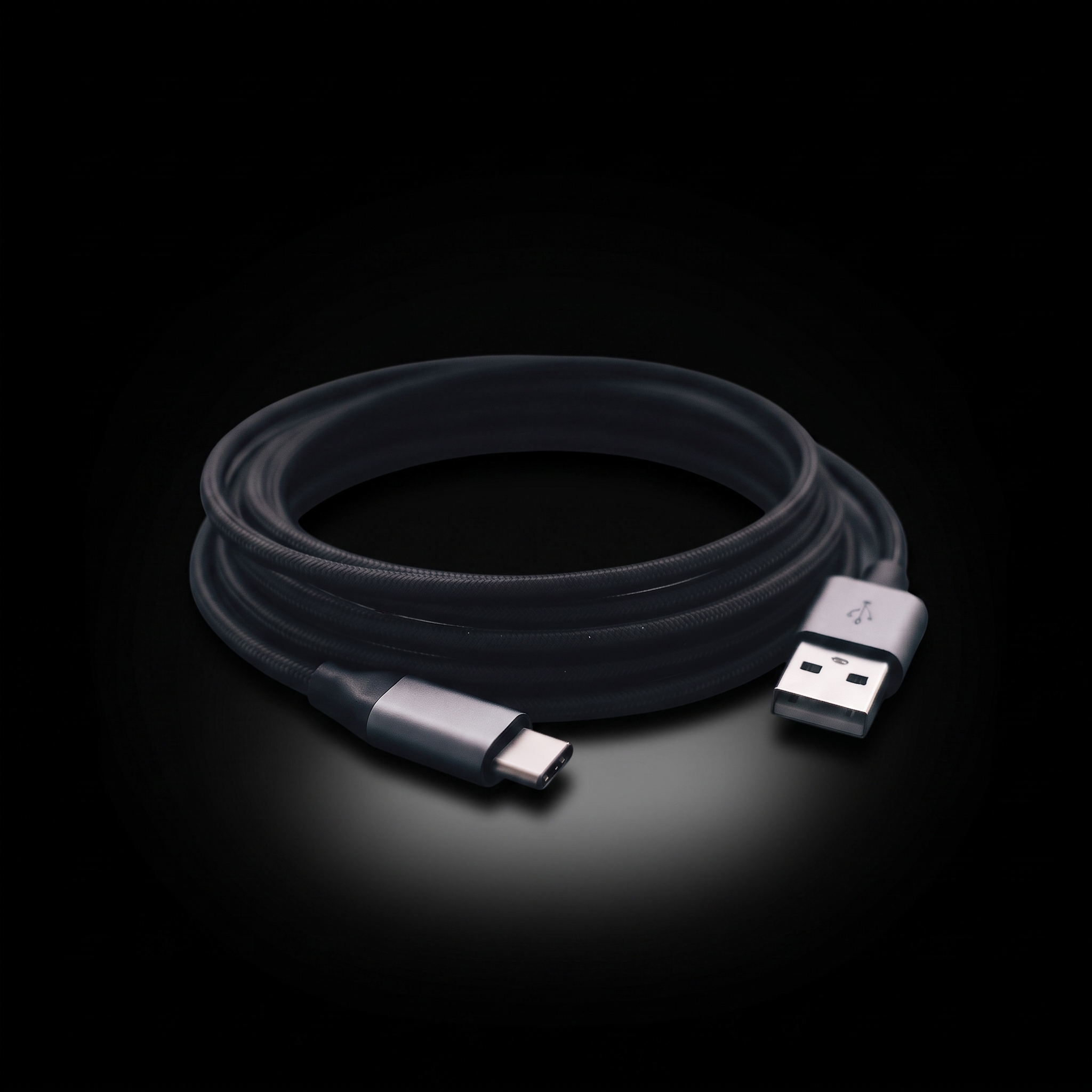

USB Cable

For USB-HID data feedback from host PCs.

2m
3m
5m

Switch Infrastructure

Required 1GbE Network Ports

0
CAT (Copper)
0
of which PoE+
0
Fiber (SFP)
0

Bill of Materials (BOM)

Automatically generated system parts list.

Missing Mounting Hardware: You have selected device carriers, but no mounting quantity defined. You need Case-Mount-Sets for fixation.
Cooling Notice: You are using 3RU carriers (0 pcs), but only configured 0 vsNEO-AIR module(s). Active ventilation is strongly recommended for fully populated racks.
Missing Power Supply: Your system requires power for devices, but you have insufficient power units defined.
Cabling Notice: Please note that vsNEO units ship without cables.
Qty Description
Enter quantities to generate the Bill of Materials
